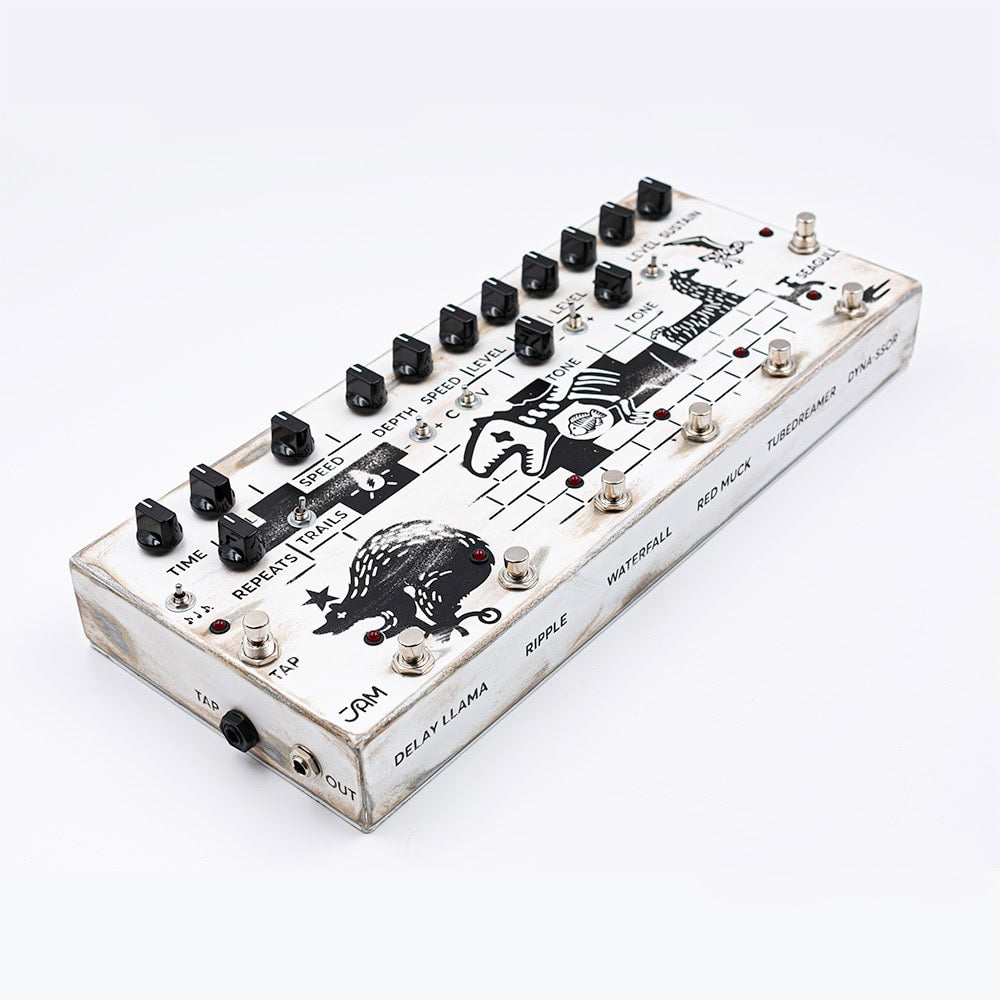

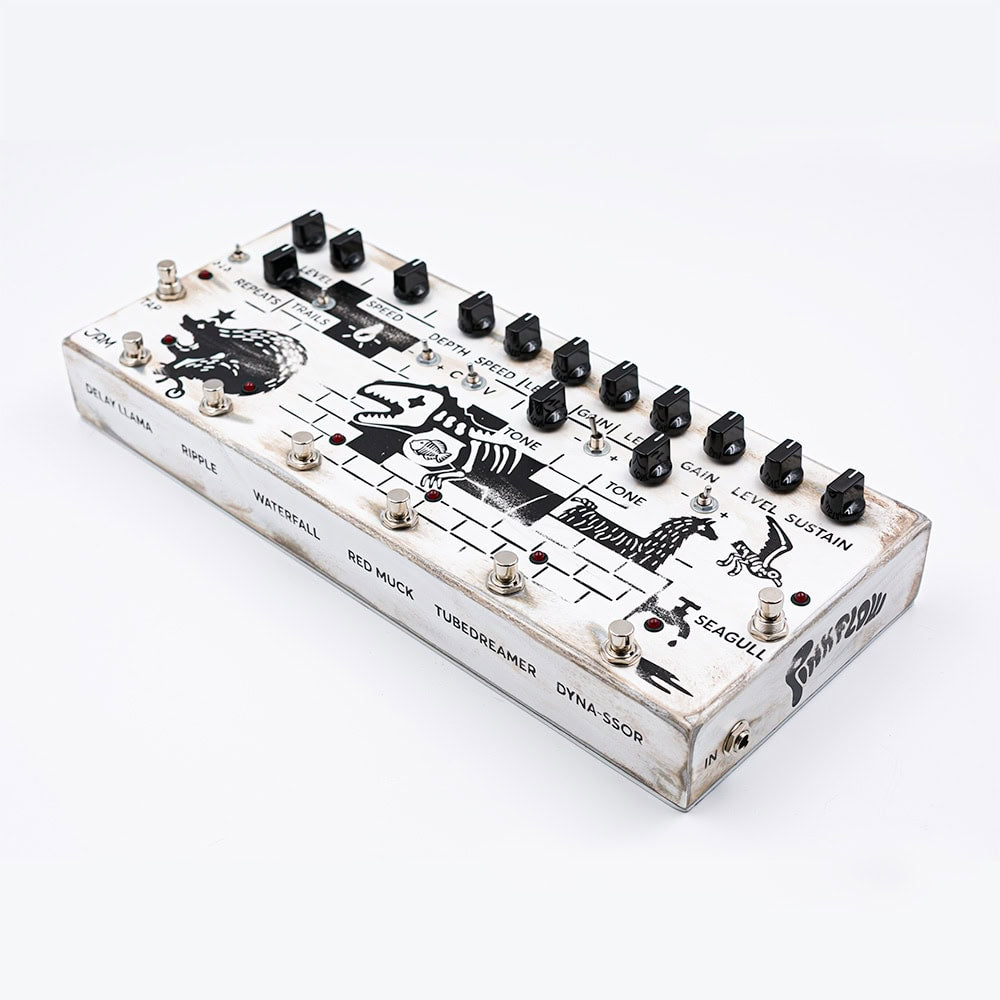

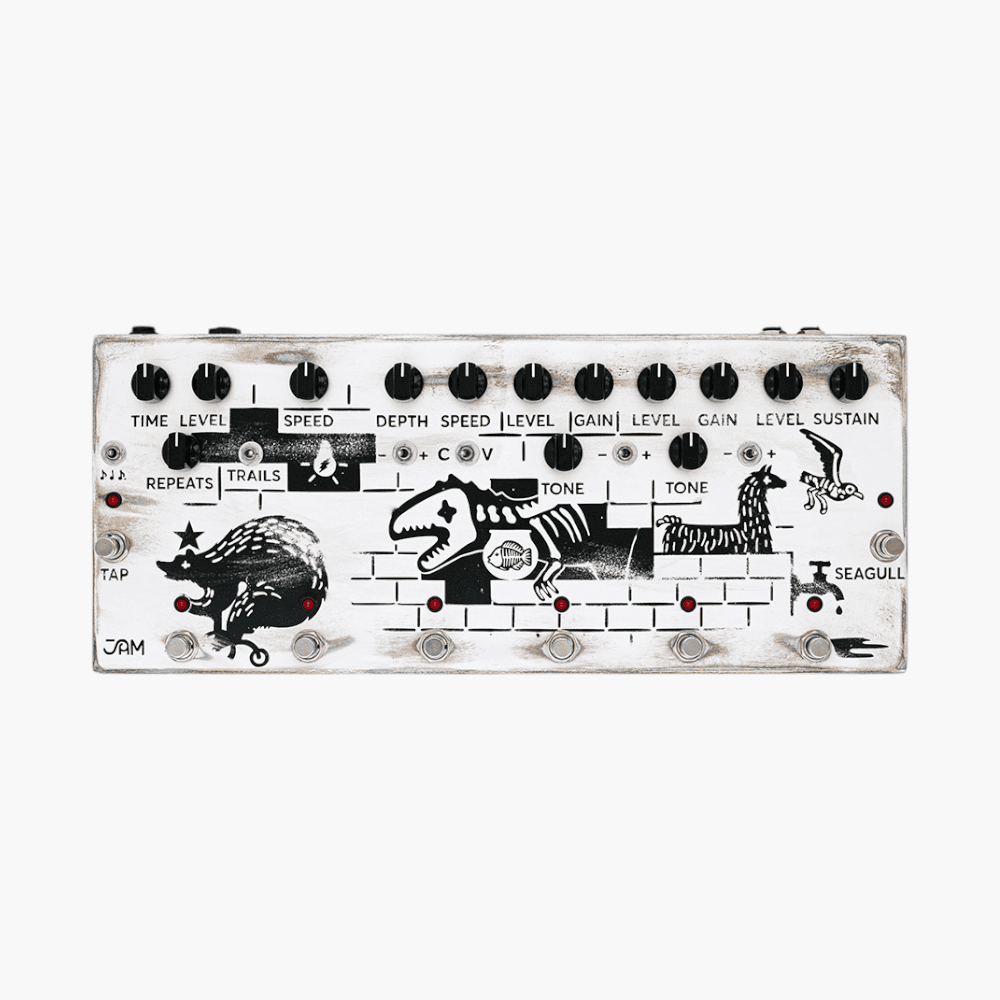

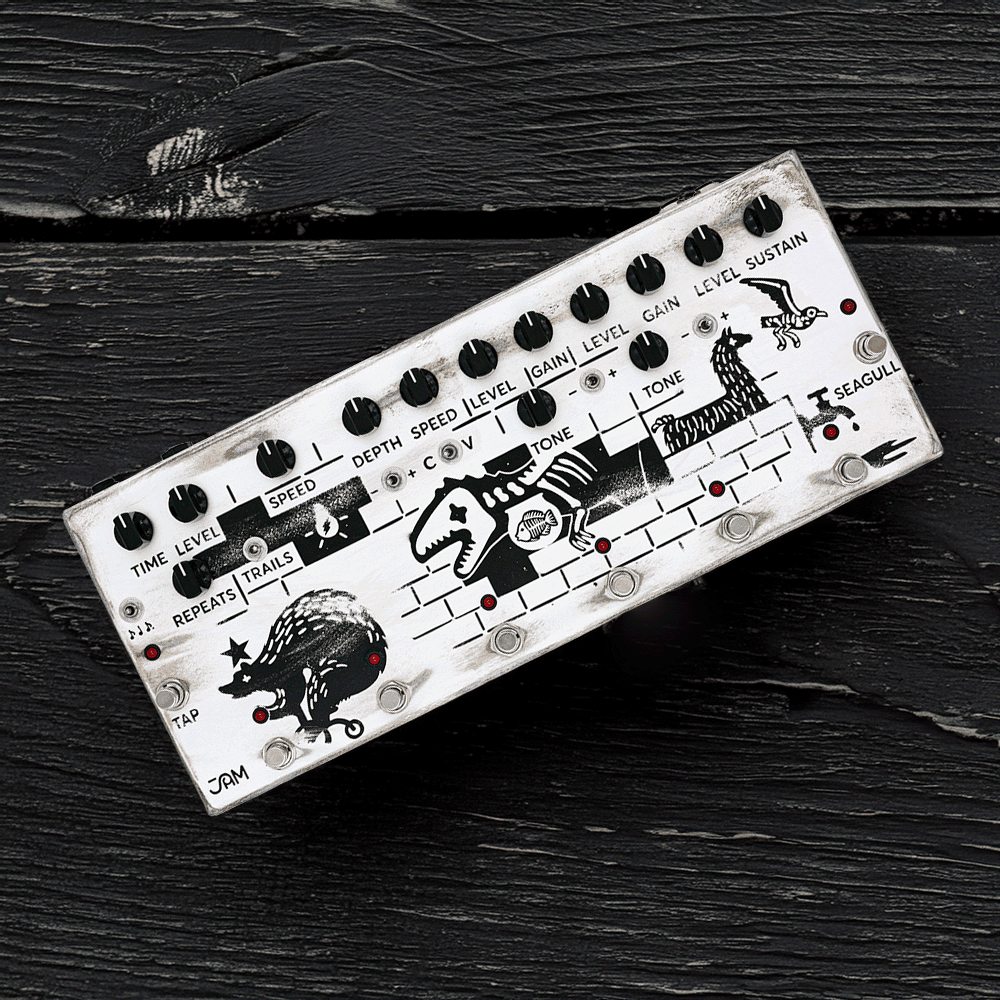

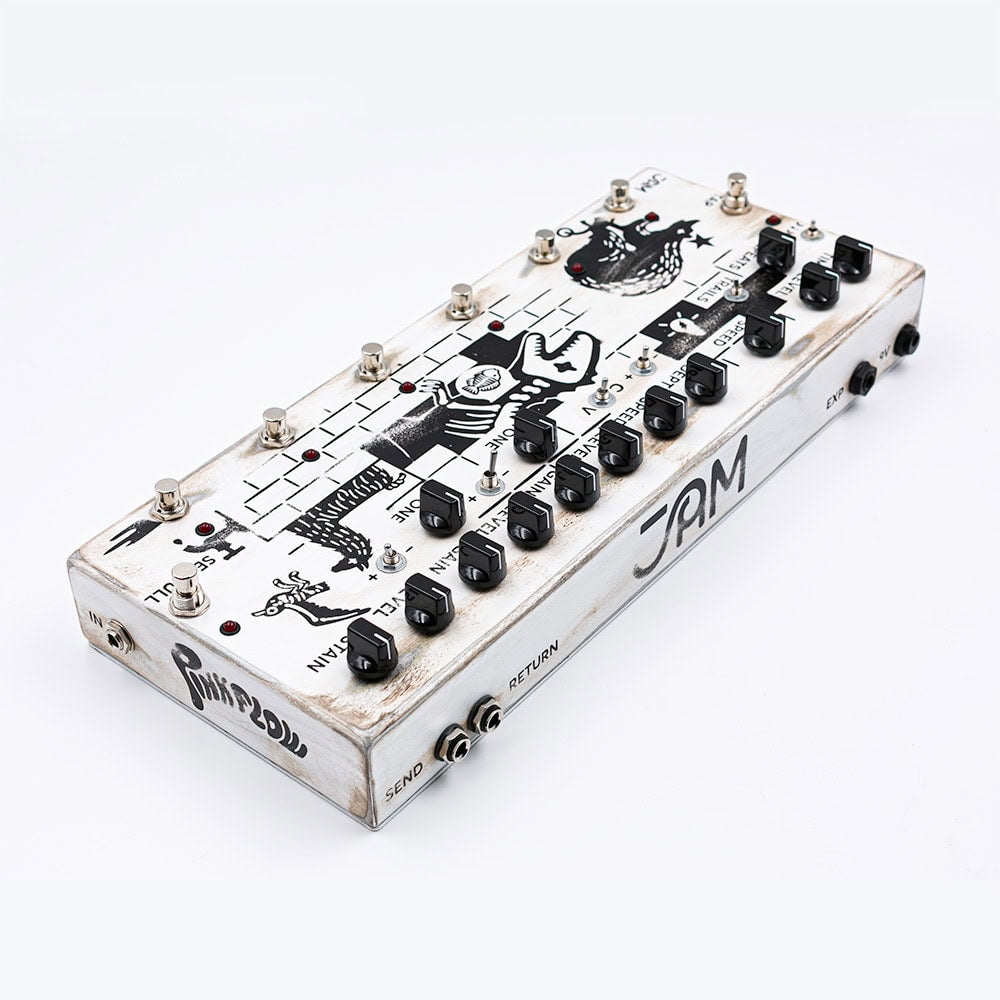

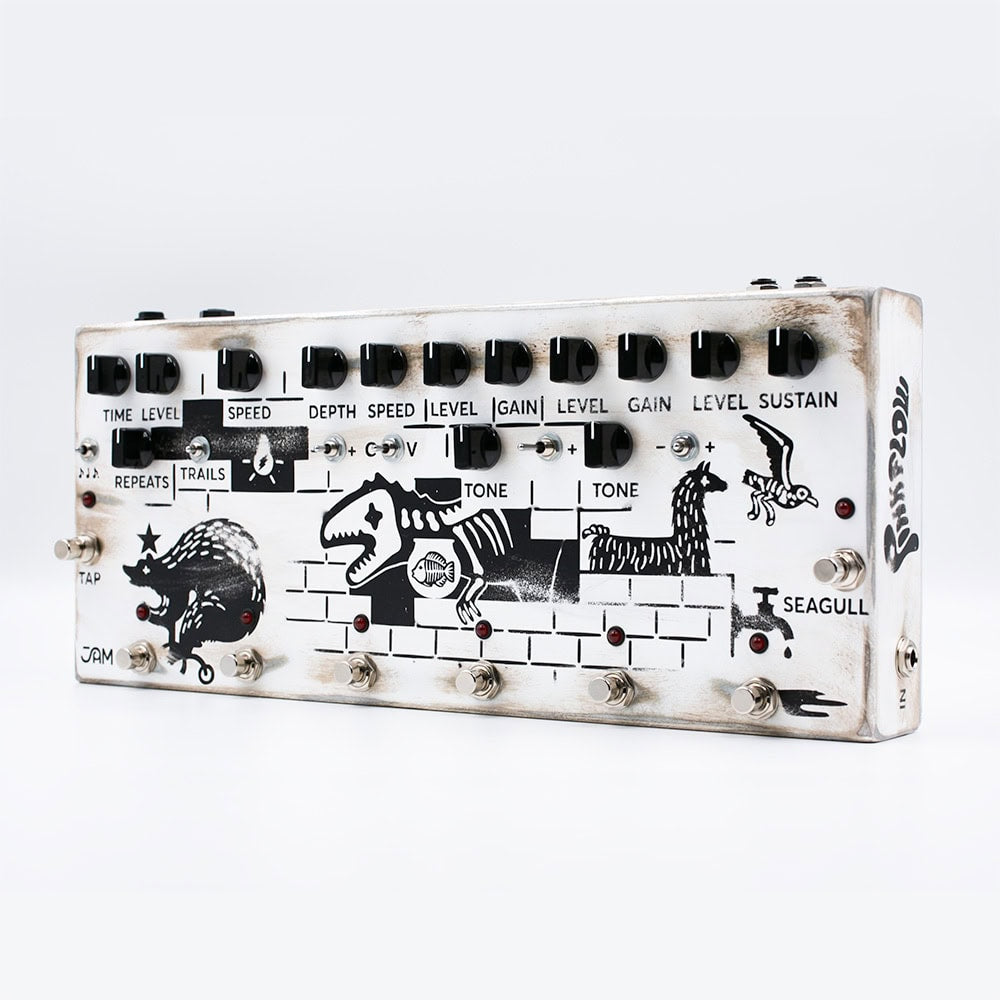

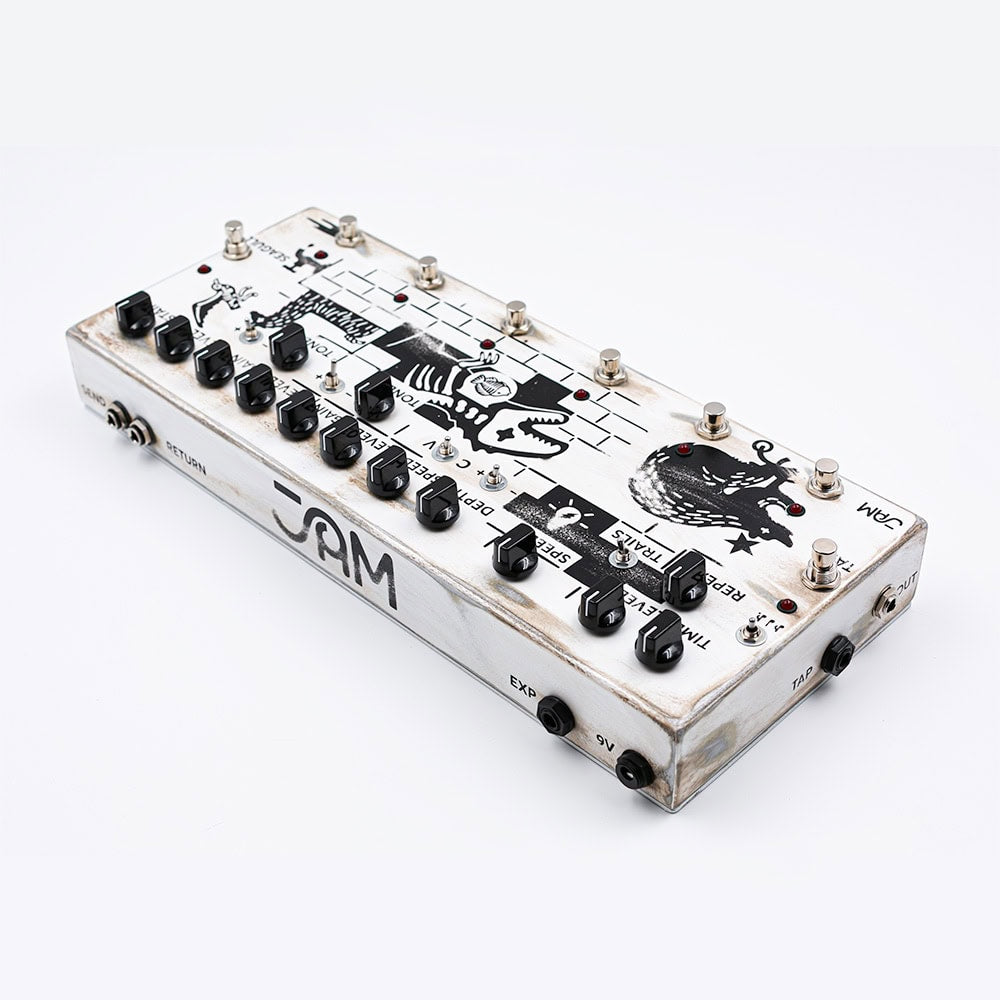

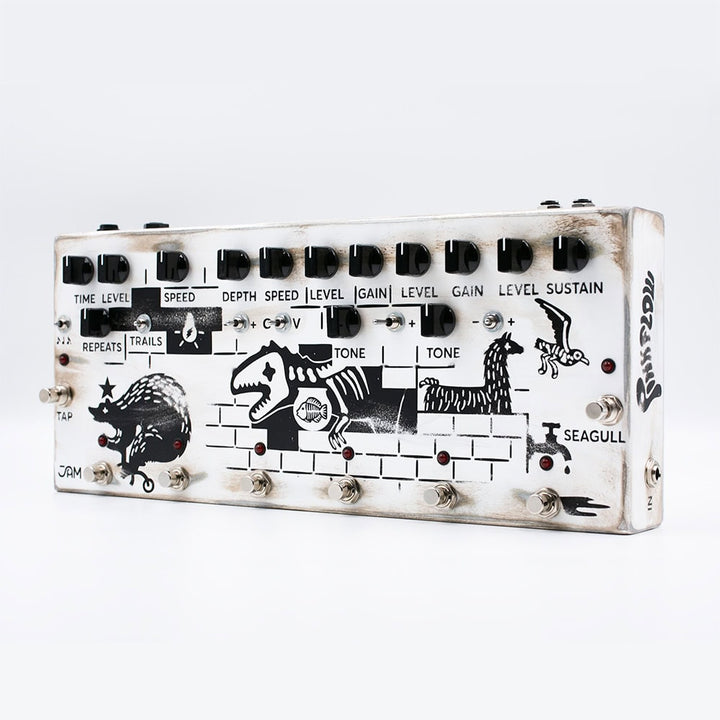

“Relic” Pink Flow

Integrated signal chain
Seagull -> Dyna-ssoR -> Tubedreamer -> Red Muck -> send/return loop -> WaterFall -> Ripple -> Delay Llama.

Gain section

• Dyna-ssoR provides NOS CA3080 compression and sustain.
• Tubedreamer delivers JRC4558D 808-style overdrive with a high-gain stage.
• Red Muck supplies Muff-inspired fuzz-distortion with selectable symmetrical or asymmetrical clipping.


Modulation section
WaterFall provides analog BBD chorus/vibrato with two intensity ranges. Ripple adds smooth two-stage phasing with a single Speed control.

Delay section
Delay Llama provides up to 600 ms of analog delay, tap tempo, three subdivisions, HOLD, external tap, delay-time expression control and selectable trails. Internal trimmers set maximum repeats and trails
decay.

Seagull operation
The Seagull requires passive pickups and no buffer between the guitar and the effect. With guitar volume fully open, use the guitar tone control to change pitch; pickup selection changes the
fundamental frequency.

Loop and buffer
The send/return loop sits after Red Muck and before WaterFall. A selectable buffer is positioned before the send and is changed by powering up while holding the Seagull footswitch: two blinks indicate off, three indicate on.

• Bypass: selectable true or buffered
• Buffer position: before the send jack
• Power: 9V DC, centre-negative
• Dimensions: 40 x 17 x 6.7 cm / 15.7 x 6.7 x 2.6 in
• Weight: 1.75 kg / 3.9 lb
