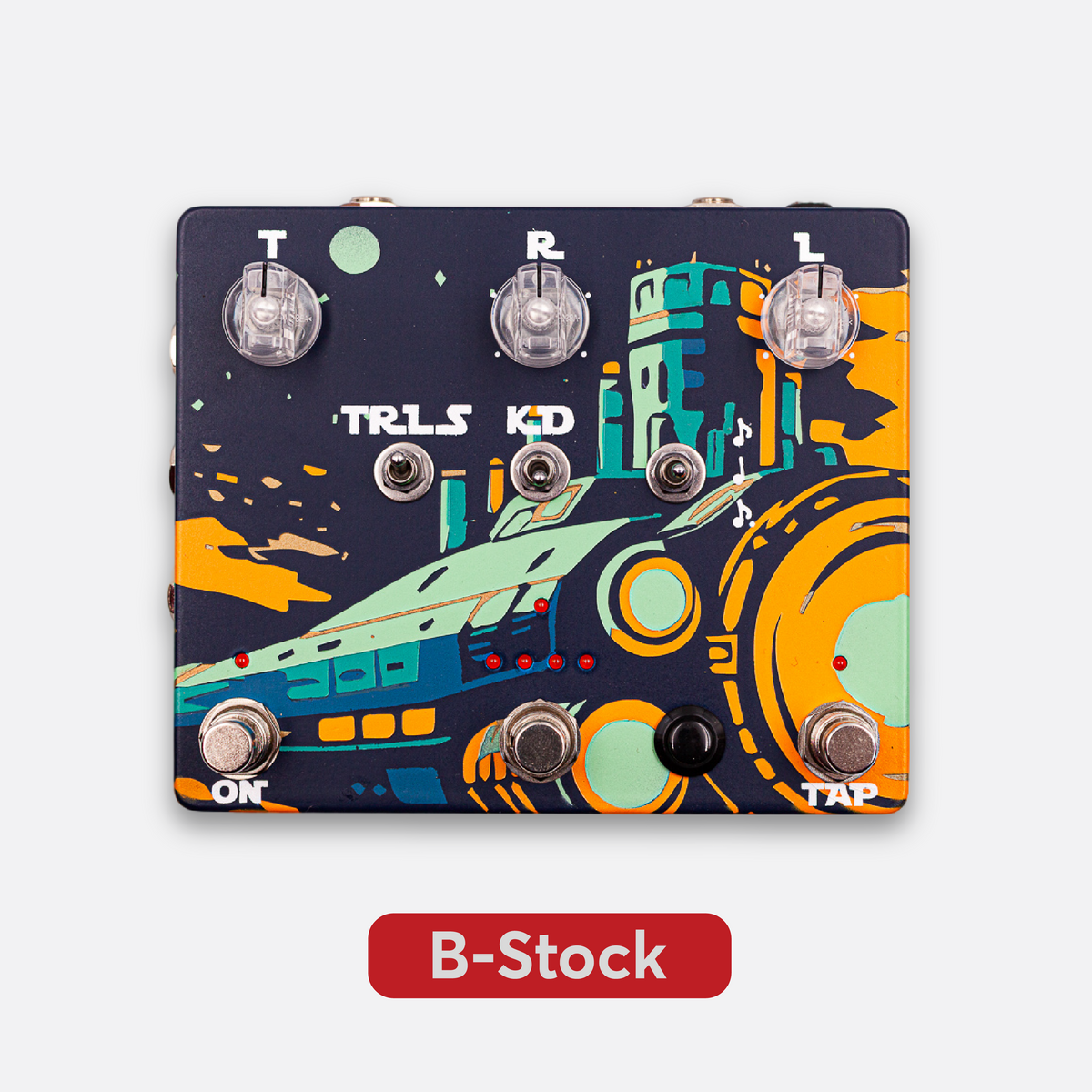

Delay Llama Xtreme "May the 4th" B-Stock

Core analog delay
Three 3205 BBD chips provide up to 800 ms of delay. Time, Repeats and Level controls cover the main delay sound, with eighth-note, quarter-note and dotted-eighth subdivisions.

Four XTREME modes

• Vibrato adds sine-wave modulation with adjustable depth and speed.
• Tape-Age creates random, worn-tape-style pitch variation.
• Random changes delay time at fixed intervals for abrupt pitch and rhythmic shifts.
• Pitch-Shift offers five interval pairs and five playback patterns, including a five-mode sequencer.


Four presets
Cycle between manual mode and four preset slots with the middle footswitch. Presets store time, repeats, level, subdivision, XTREME mode settings and XTREME on/off state. Factory examples are
included for all four XTREME modes.

Performance control

• Tap the right footswitch at least twice to set tempo; hold it for oscillation. A prolonged press on
  the middle footswitch turns the selected XTREME mode on or off.
• The TRLS switch selects buffered trails or true bypass; KD activates kill-dry operation.


External control

• DT accepts a passive 10 kΩ expression pedal for delay time, or 0-5V CV when the internal DIP
  switches are set to CV mode.
• PS accepts a TRS preset controller. TAP accepts a normally-open TS momentary remote switch. The optional CTRL BOX provides direct access to presets and tap/HOLD.


Internal adjustment
A multi-turn trimmer sets the maximum repeat count. A second trimmer sets maximum trails decay in buffered bypass.

• Bypass: selectable true or buffered trails
• BBD chips: 3 x 3205
• Maximum delay time: 800 ms
• Presets: 4 plus manual mode
• Power: 9V DC, centre-negative; isolated supply recommended
• Maximum current draw: 130 mA
• Expression input: passive 10 kΩ
• CV range: 0-5V
• Dimensions including jacks and controls: 14.9 x 12.4 x 5.6 cm / 5.8 x 4.8 x 2.2 in
• Weight: 620 g / 1.35 lb
• Input impedance: 1 MΩ
• Output impedance: <1 kΩ
• Input and output are in phase
