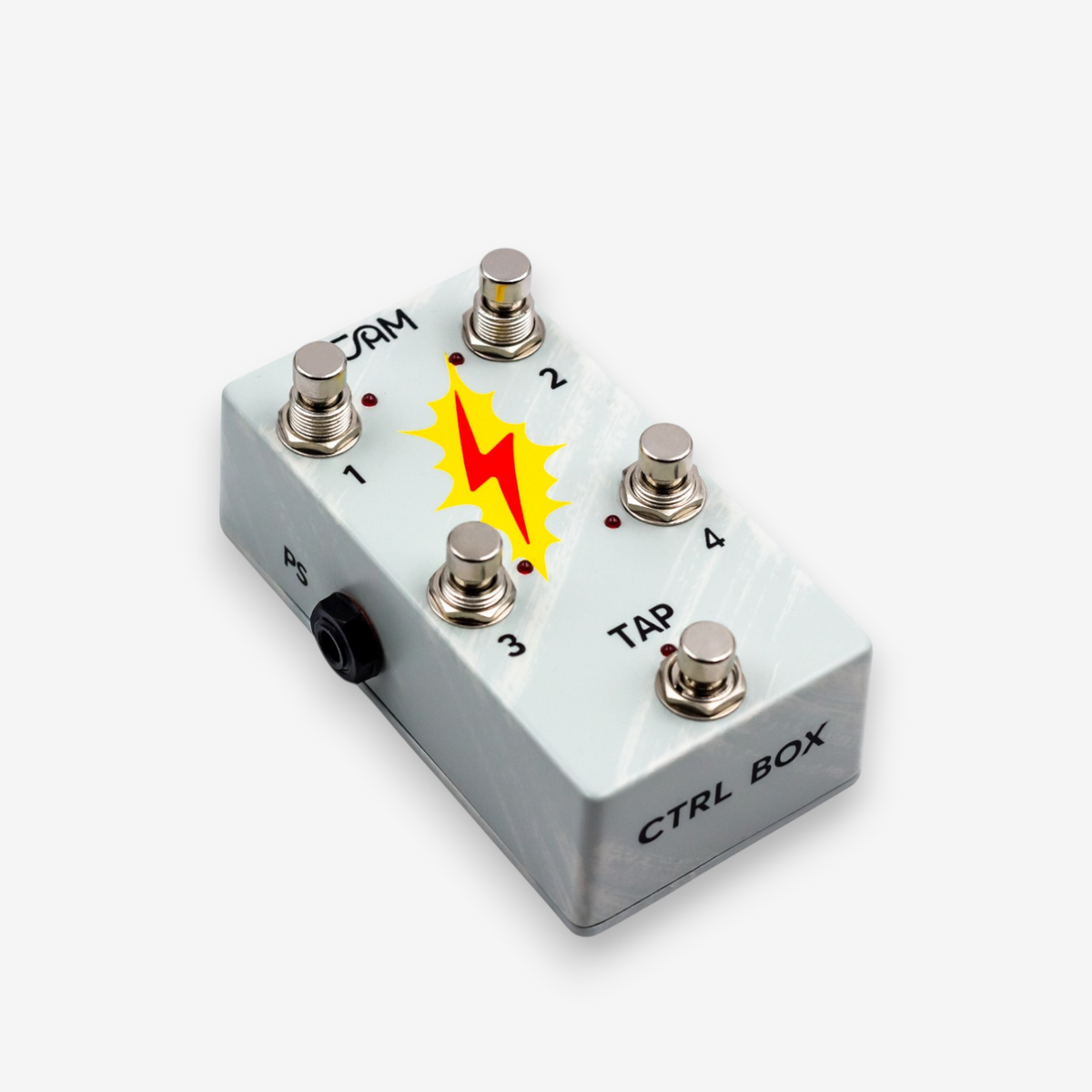

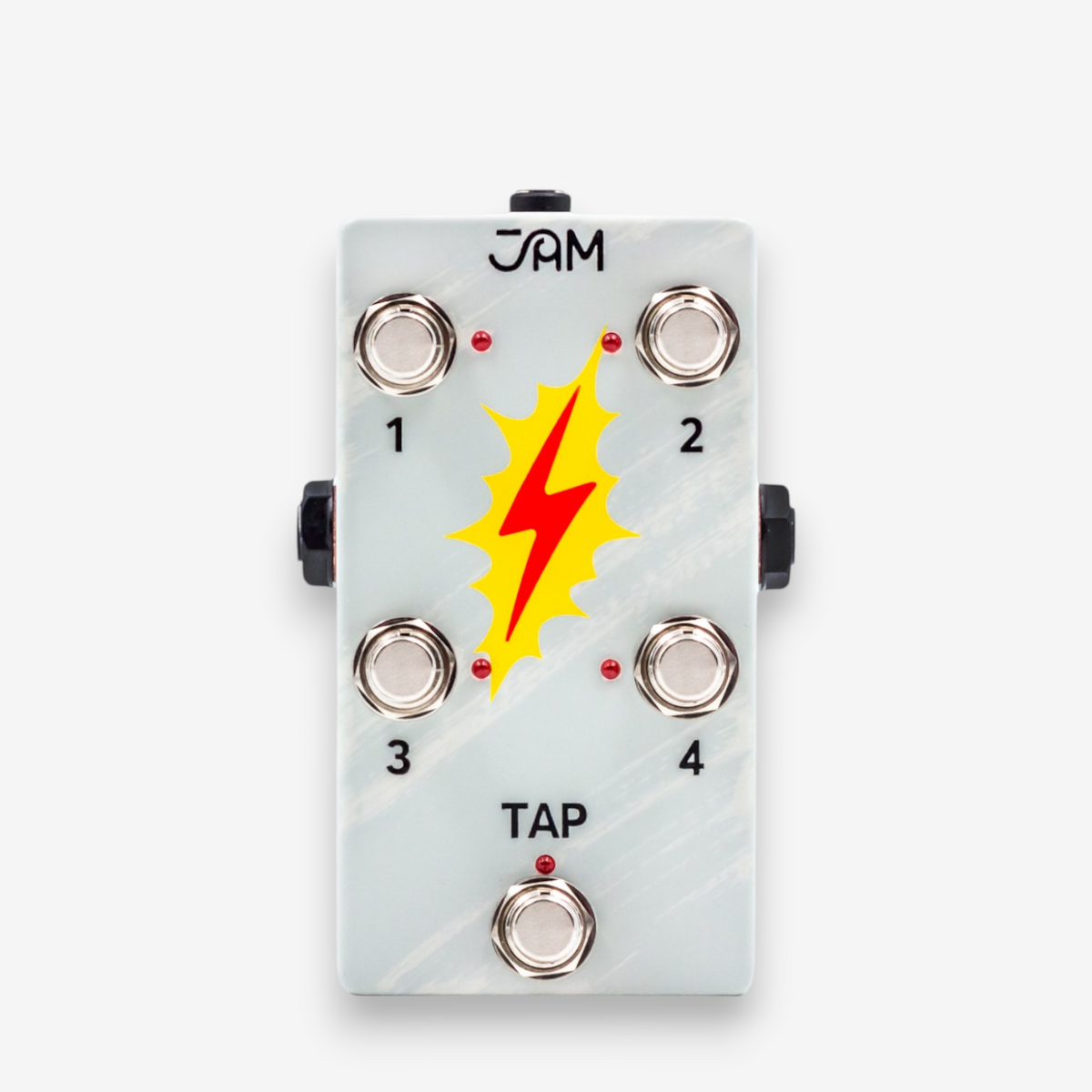

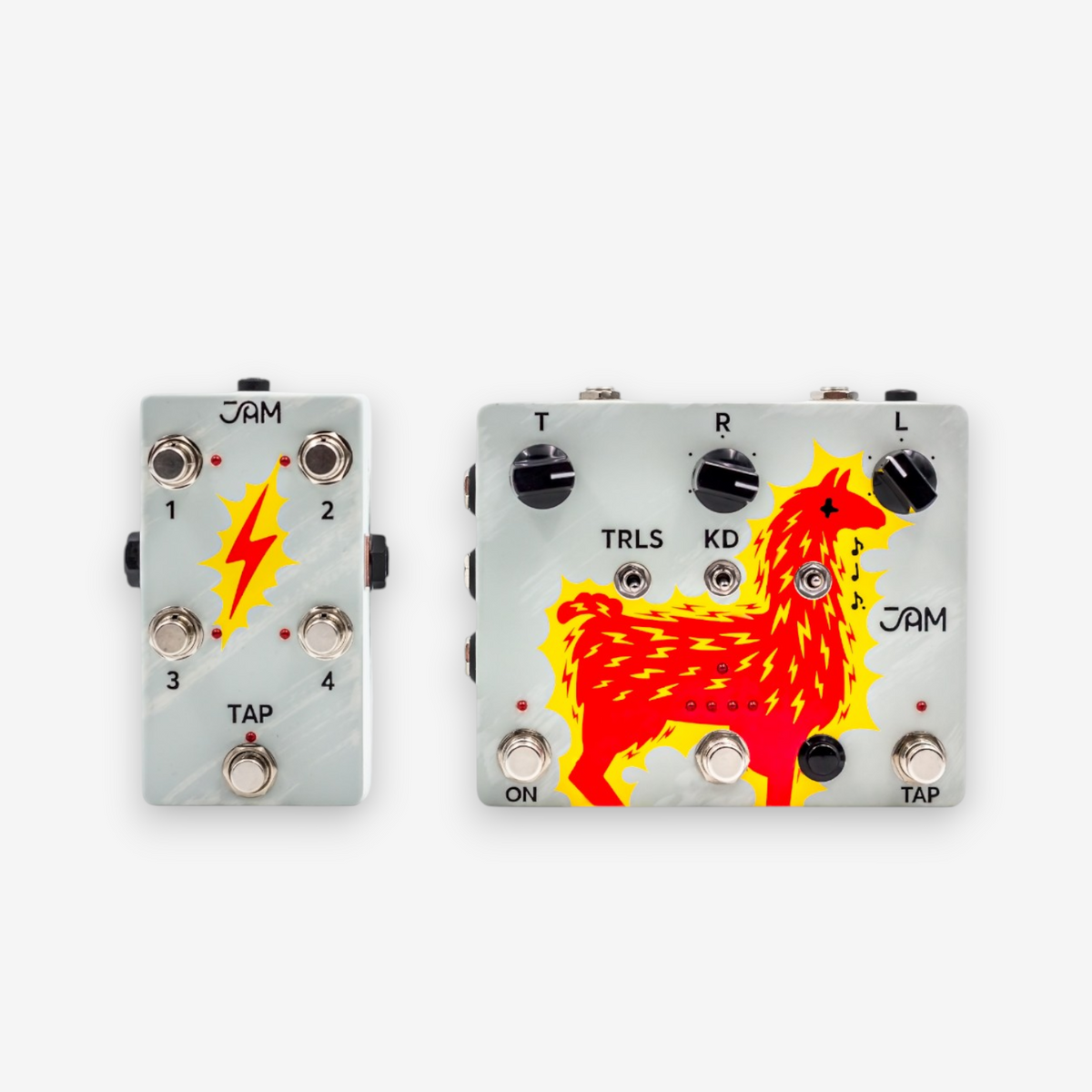

CTRL BOX

Remote preset selection

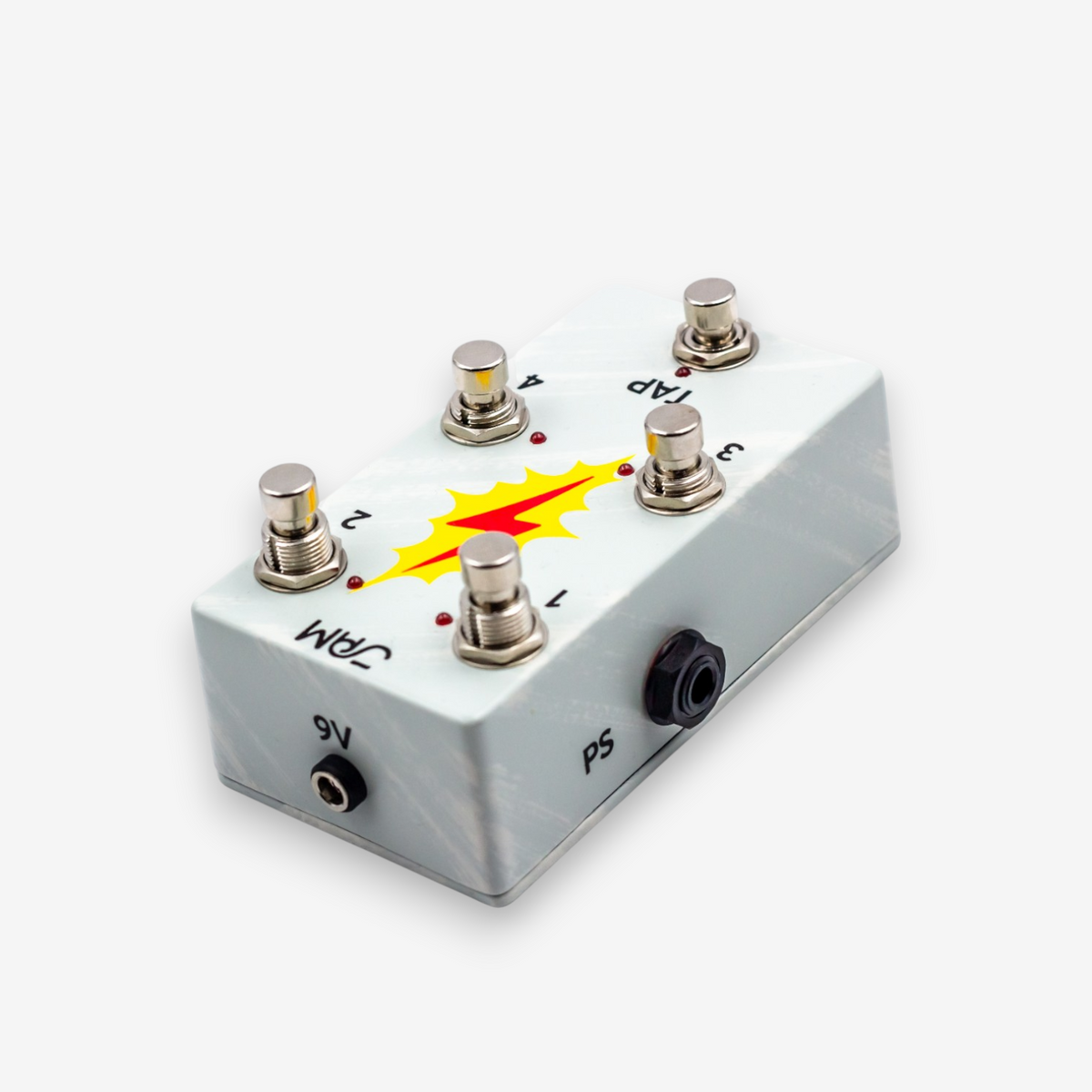

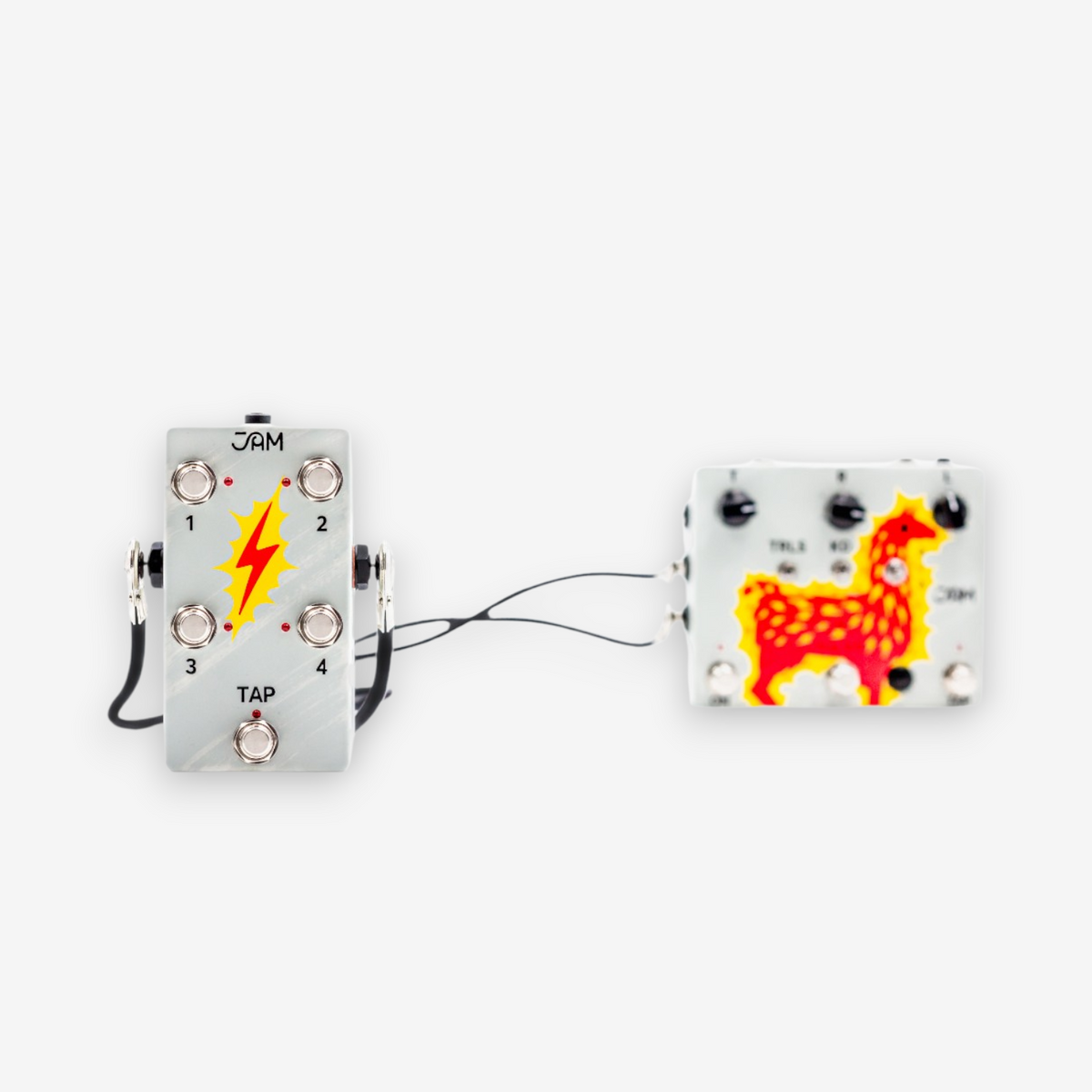

Connect the CTRL BOX PS output to the Delay Llama XTREME PS input with a stereo-to-stereo TRS cable.
Press footswitch 1, 2, 3 or 4 to recall that preset directly.

Remote tap tempo and HOLD

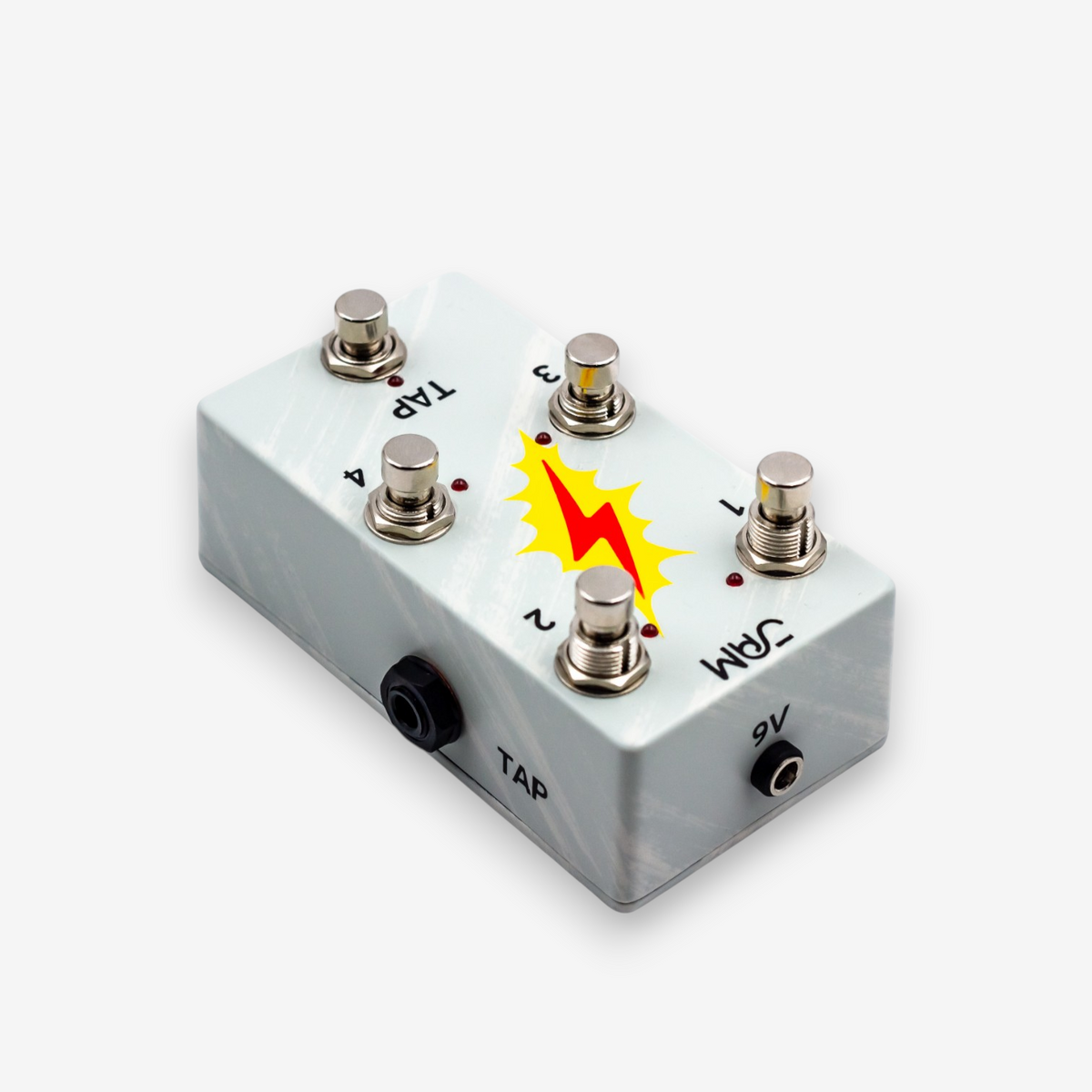

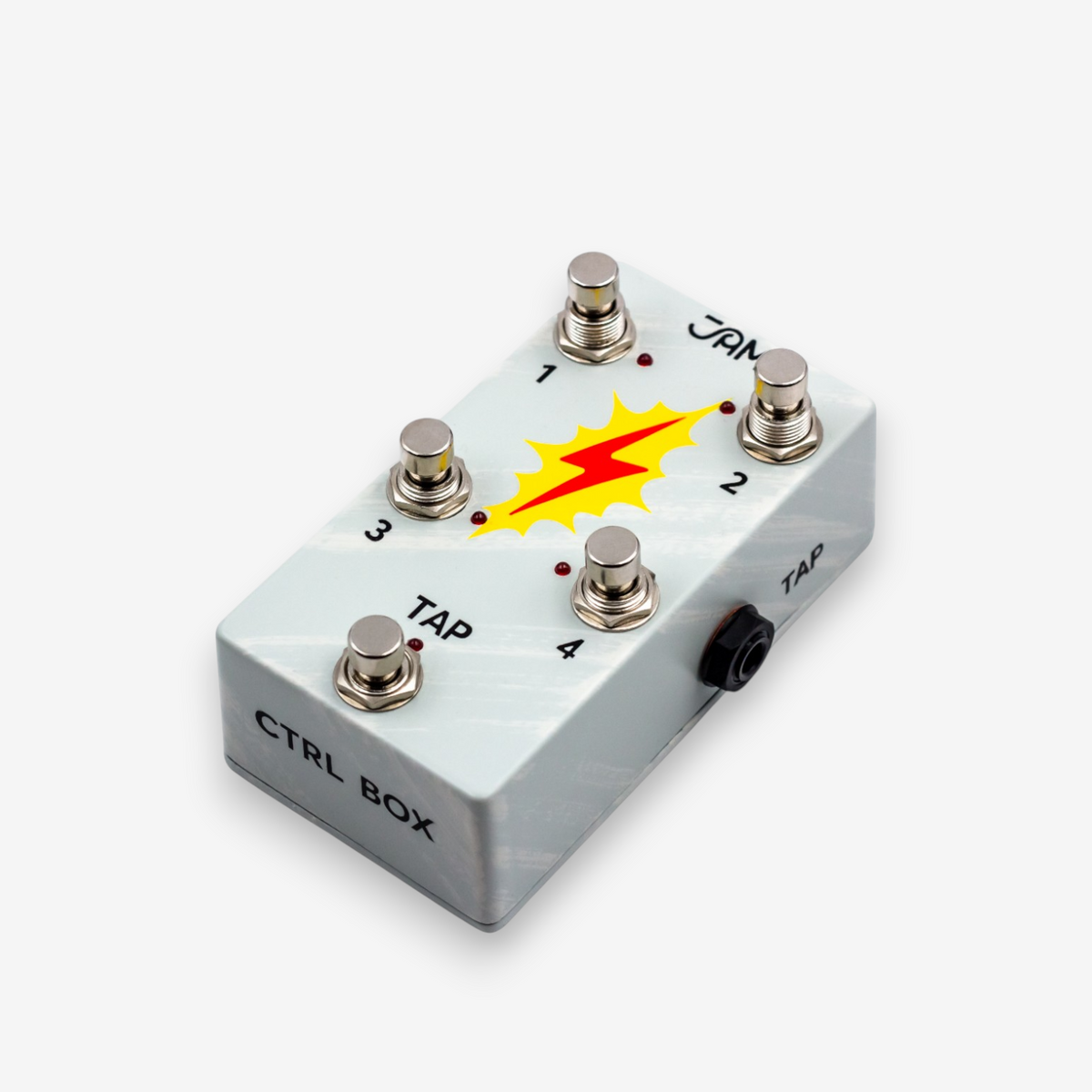

Connect the CTRL BOX TAP output to the Delay Llama XTREME TAP input with a mono-to-mono TS cable.
Tap at least twice to set tempo; hold the TAP footswitch to engage HOLD.

Preset-saving note
When remote tap tempo is connected, save a preset by holding the Delay Llama XTREME middle footswitch and the CTRL BOX TAP footswitch together. Alternatively, disconnect the XTREME TAP input
temporarily while saving.

Access limitation
The CTRL BOX recalls the four saved presets only; manual mode remains accessible from the Delay
Llama XTREME itself.

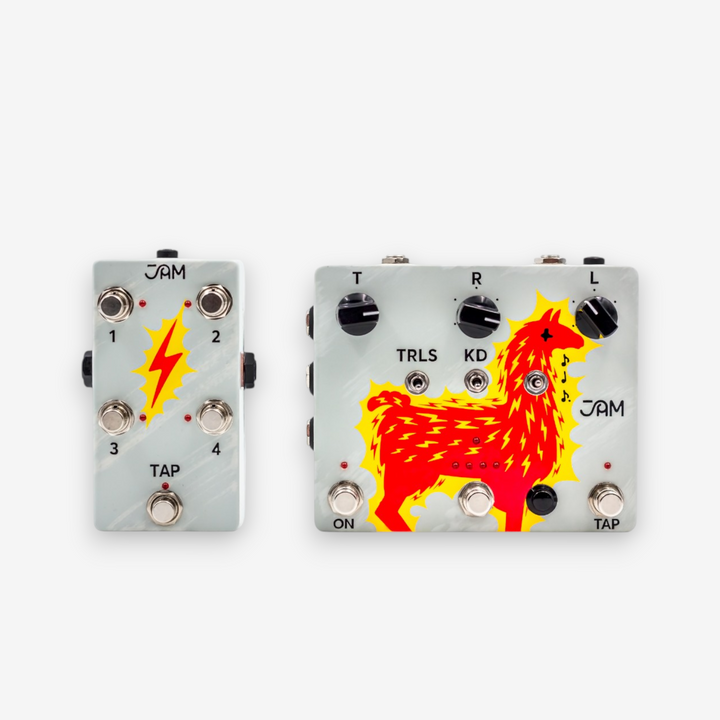

• Compatibility: Delay Llama XTREME
• Power: 9V DC, centre-negative
• Maximum current draw: 12 mA
• Preset connection: TRS stereo cable
• Tap connection: TS mono cable
• Dimensions including jacks and controls: 7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 in
• Weight: 300 g / 0.66 lb
